STANDORT : NORD - DEUTSCHLAND
ABBAU SOWIE TRANSPORT KANN ANGEBOTEN WERDEN
MEHR BILDER ÜBER WHATSAPP AUF ANFRAGE +393452690976
WIR SPRECHEN: DEUTSCH; ENGLISCH ; ITALIENISCH UND ARABISCH

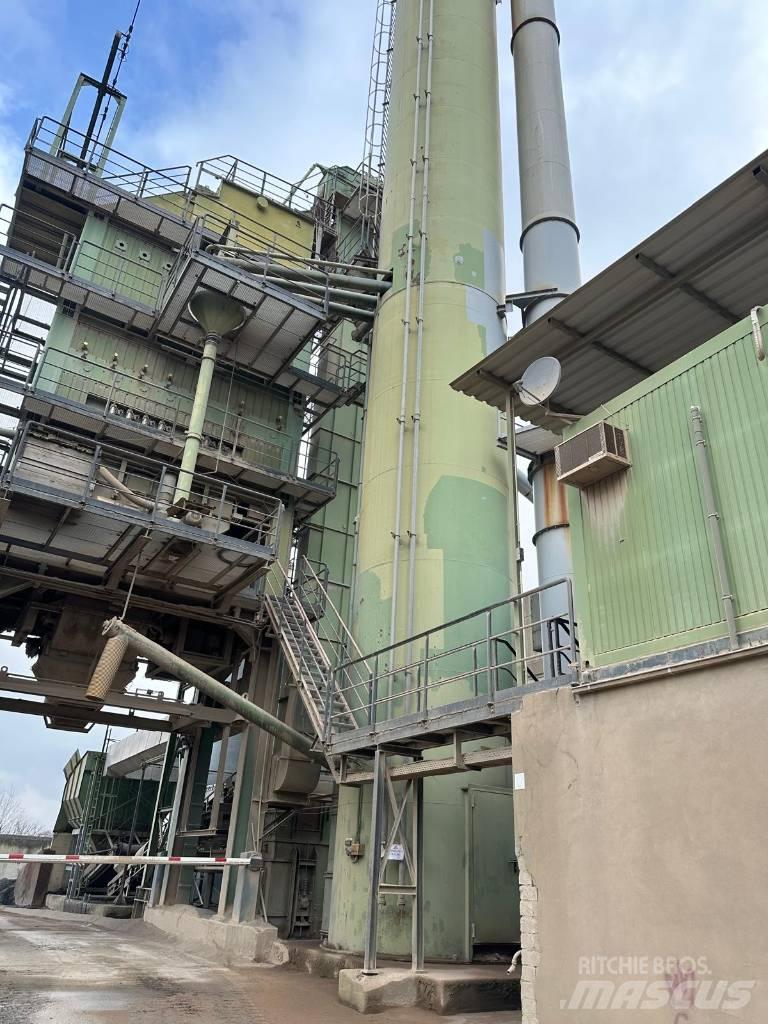

BENNINGHOVEN – asphalt plant, type BA 240, built 1990 , cap. approx. 240 t/h
Comprising:
1. 12 cold feeders à approx. 10 m³ with belt extraction
2. 1 collecting belt l = approx.36 m / 600 mm
3. 1 belt to dryer l = approx. 13,5 m / 600 mm
4. 1 belt into dryer l = approx. 3,5 m / 600 mm
5. 1 dryer, drum TT 10.25. approx. 10 x 2,40 m, drum barrel renewed approx. 2012
BENNINGHOVEN burner RJ 3 HEL / BKS 16 MW + HEL, 16,6 MW, burner built 2009
6. 1 BMD-filter dust collector, approx. 67.000 m³/h exhauster motor 110 Kw, chimney approx. 27 m
7. 1 hot elevator
8. 1 mixing tower BA 240, screen for 5 granulations
Hot mineral bin approx. 100 t, 6 compartments
Bitumen balance and bitumen addition via counter,
mixer cap. 3 t
9. 1 FMA-ready material silo, total cap. 430 t, 4 compartments
10. 1 filler tower – FF 2 x approx 50 t + 1 x approx. 50 t
11. 1 filler elevator
12. 3 bitumentanks à approx 60 m³, vertical
1 bitumen tank approx. 50 m³, vertical
1 thermaloil heating unit with OERTLI-oil burner
13. 1 BKS-silo approx 120
14. 1 fueloil tank approx. 60 m³
15. 1 control and switch cabin with TELTRONIC MPS Telttronik 2007- Hard and Sostwareupdate 2016,
, MPS built approx. 2007 / 2016
1 sub-container with control for BKS
1 compressor
16. 1 recycling cold addition, comprising:
2 RC-cold feeders à approx. 15 m³ with belt extraction and grill
2 RC-beltsMehr anzeigen
