Putzmeister M42-4

Preis ohne MwSt.

Images24Videos1

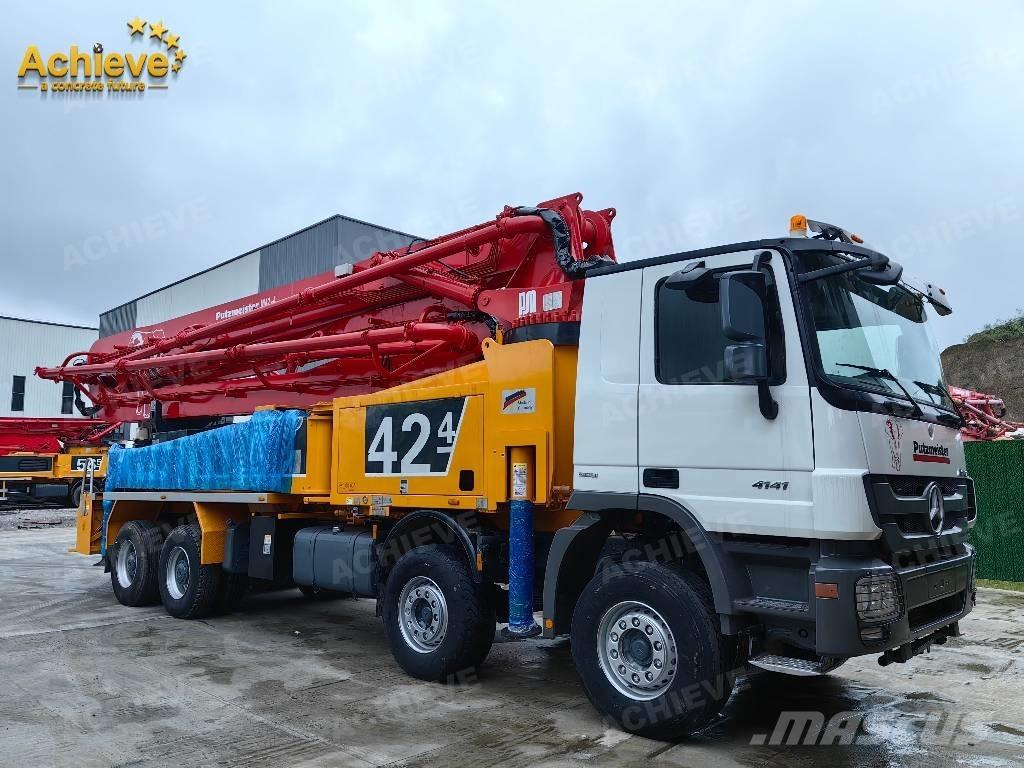

Putzmeister M42-4 Betonpumpen
Putzmeister M42-4 Betonpumpen
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Betonpumpen
Marke / Model
Putzmeister M42-4
Baujahr
2014
Betriebsstunden
3.000 Std.
Zustand
Generalüberholt,Aufbereitet
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
C8CCEE59

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
AICPT010
Anzahl der Teilabschnitte
5
Letzte Inspektion
2024-09-26
Dienstgewicht
26.000 kg
Auslegerlänge
400 cm
Max. horizontale Reichweite
3.730 cm
Maximale vertikale Reichweite
4.160 cm
Bewegungsart
Stationär
Pumpen-Typ
Diesel
Pump-Stärke
300 kW
Transportabmessungen (L x B x H)
11500 x 2500 x 4200 mm
Emissionsklasse
Emissionsklasse 5 / Tier V
Hersteller motor
Ergonic3. EU Version
Pumpenart
Kolbenpumpe
Rahmenhersteller
Mercedes Benz
Reifenmarke
Mercedes Benz
Produktionsland
China
Lieferbedingungen
FOB, CIF
Zertifikate
EPA, CE, TÜV
Zusatzgeräte
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 41.6 m Horizontal Reach gross 37.3 m Horizontal Reach net 34.5 m Reach Depth 31 m Unfolding Height 8.6 m Slewing Range 365 degree End Hose - Length 4 m Delivery Line (DN, Pressure) DN125/5.5 / 85 mm/bar Support width Standard (front-rear) 7.5 / 8.3 m Support width OSS (front-rear) 5.0 / 6.4 m Support width iSC (front/rear) 2.6-7.5 Length x Width x Height 11.35 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 170 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 27
Zusätzliche Informationen
The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons. Key Features A gross weight of less than 32 t includes sufficient reserves for payload and operating materials Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure Efficient work through consistently clever ergonomic design Even better safety through closer consideration for current standards and guidelines Service-friendly as a result of its optimised accessibility and consistent bolted concept Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard deliMehr anzeigen

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
