Produktgruppe
Kompressoren
Marke / Model
Atlas Copco GA 37
Baujahr
1998
Zustand
Gebraucht
Maschinen Standort
Langley, British Columbia
Land
Kanada
Mascus ID
D73750BA

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
101075
Zusätzliche Informationen

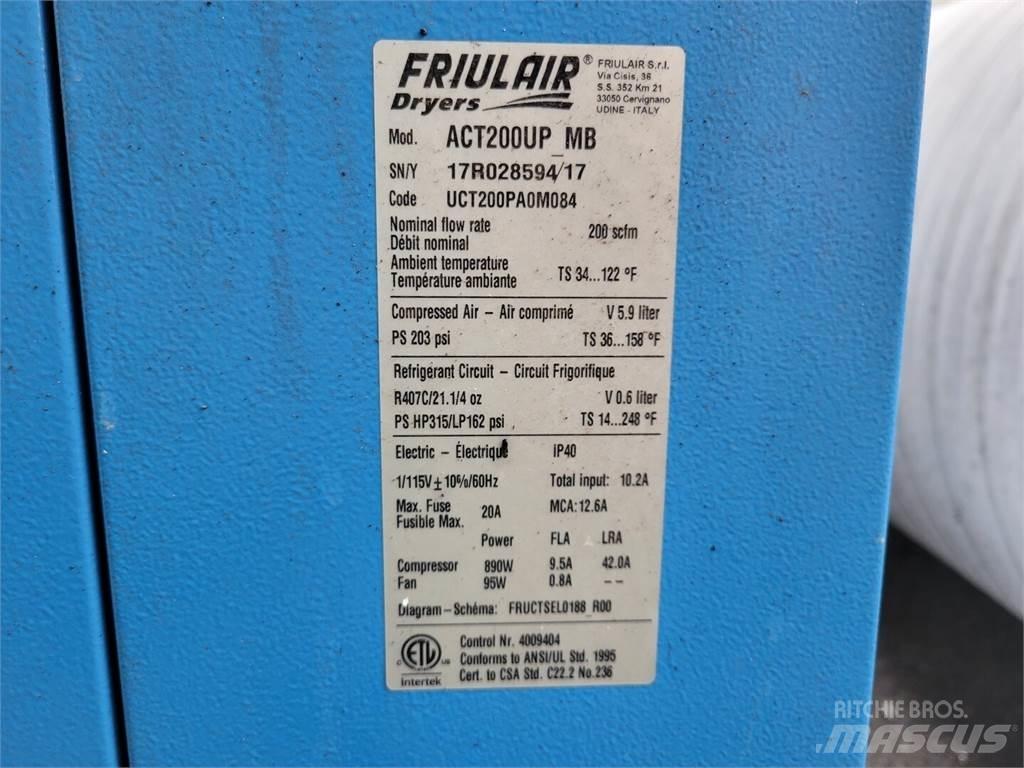

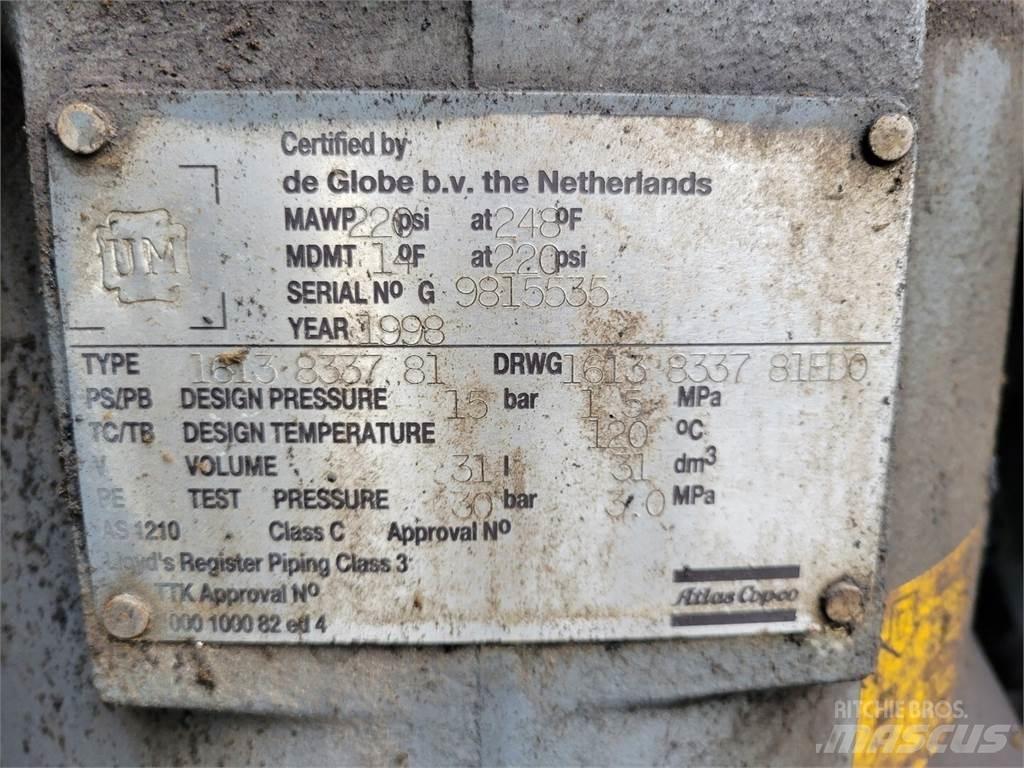

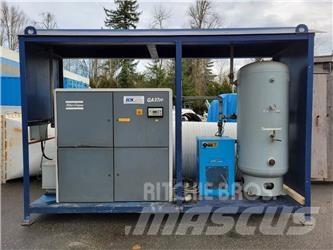

103 CFM, 132P PSI Rotary Screw Air Compressor GA37 w/ External Air Dryer Title: 103 CFM, 132P PSI Rotary Screw Air Compressor GA37 w/ External Air Dryer SKU: 101075 Model: GA 37 Year: 1998 Condition: Used S/N: AII 360359 GeneralCFM:103cfm Compressor Air Type:Rotary Screw Power Type:Electric Max. Pressure:132psi Mount:Skid Mounted Tank Size:31 Litres HistoryHours:33196 Load Hours:26669 ElectricalHorsepower:50hp Voltage:575volts Amps:47.5amps Phase:3-phase Made In: BELGIUM Dimensions: 105.00 (H) x 48.00 (W) x 180.00 (L) inches ** Skid consists of Compressor, Air Dryer, Tank, Transformer, and Heavy Duty Safety Switch Compressor Max Speed: 3600 rpm Control Cubicle: - Control Voltage: 115 VAC / 24 VDC - Supply Voltage: 575 V - Rated Current: 71 A - Max. Motor Power: 69 hp Built-in Tank: - Volume: 31 Litres - MAWP: 220 psi ... 248oF - MDMT: 14oF ... 220 psi Built-in Air Dryer: - Voltage: 200/230 V, single-phase - Power: 2.3 kW - Compressed Air Pmax.: 13 bar - Tmax.: 55oC - Refrigerant: R404A - Refrigerant Amount: 1.3 kg - Refrigerant Pmax. High: 31 bar External Air Dryer Brand: Friulair Dryers Model: ACT200UP_MB Nominal Flow Rate: 200 scfm Compressed Air: 203 psi, 5.9 Litre, 34 to 122oF Refrigerant R407C: 162 psi, 0.6 Litre, 14 to 248oF External Tank Overall Height" 79" Overall Diameter: 31" Transformer Type: Auto Power: 75 kVA Phase: 3 Primary: 600Y/347 V Secondary: 480Y/277 V Heavy Duty Safety Switch Amps: 100 A Volts: 480/600 VMehr anzeigen

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
