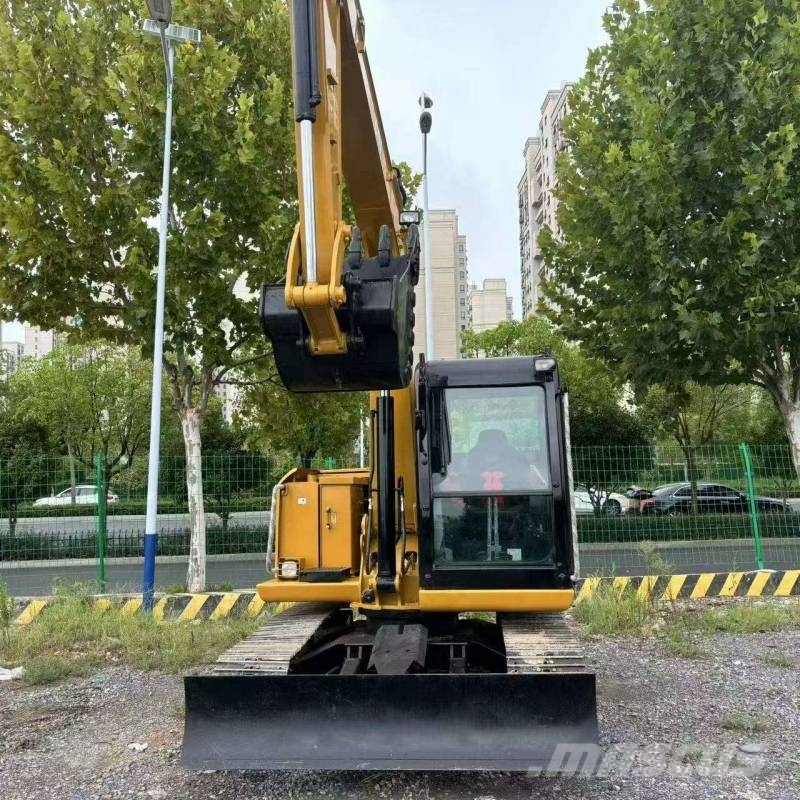

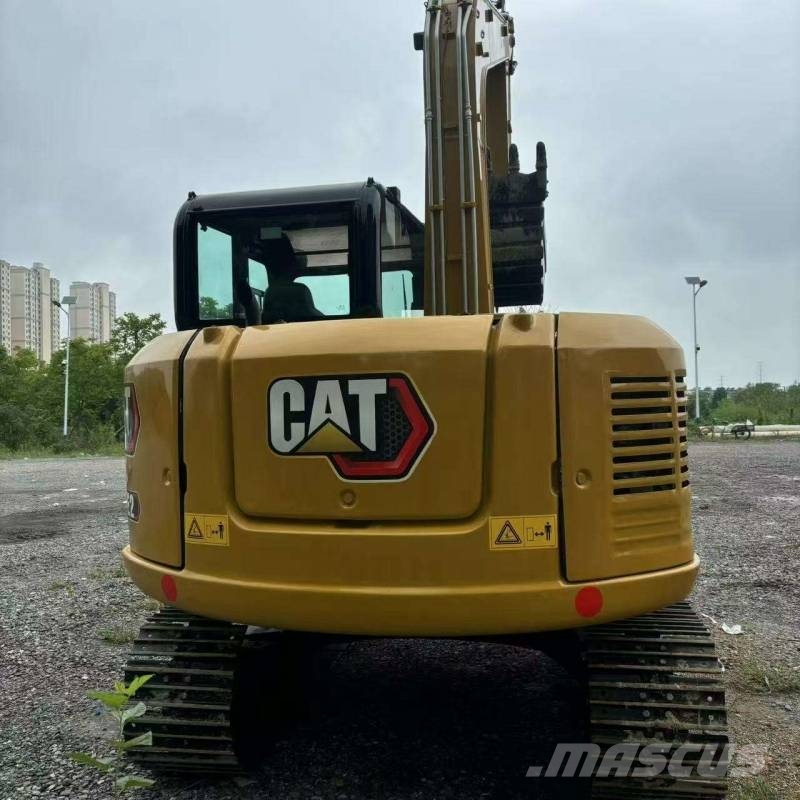

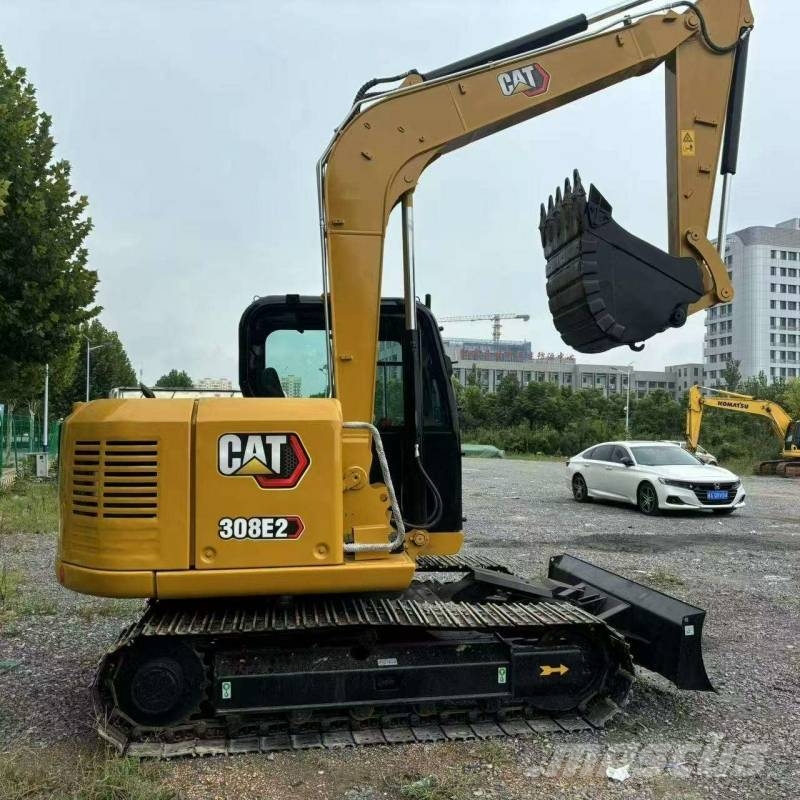

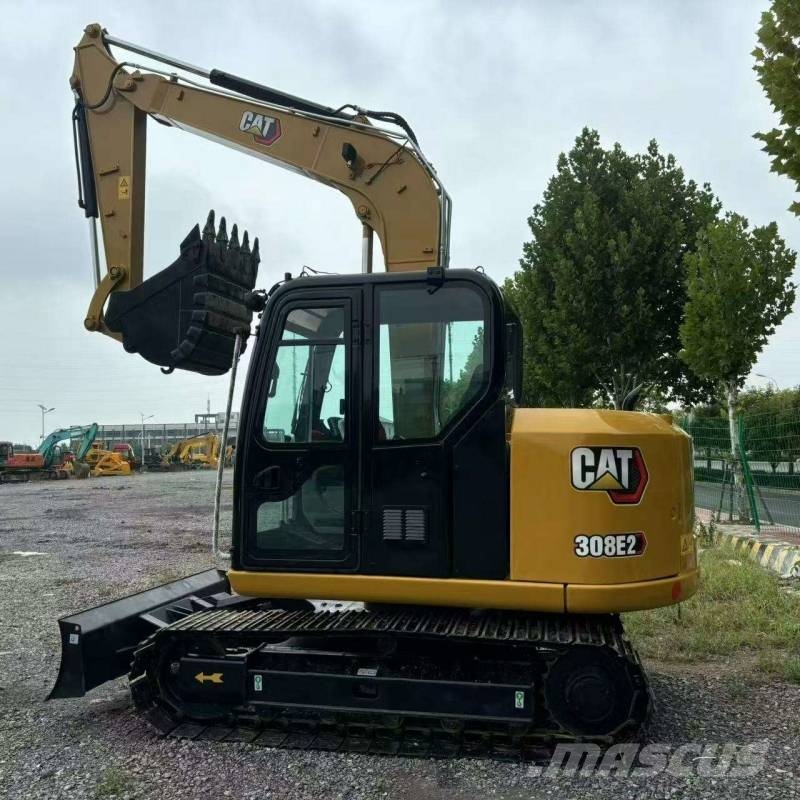

CAT 308

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690

## Engine - Model: **Cat C2.8 Turbo** diesel engine - Net rated power: 51.2 kW (69 hp) @2400 rpm - Displacement: 2.8 L > > Note: EU Stage V version equipped with DOC+DPF; older Stage IIIA version without DPF ## ⚖️ Weight & Counterweight - Operating weight (cab, steel tracks, standard bucket): **8460 kg** - Compact radius / short tail swing design ## 📐 Transport Dimensions (L × W × H) **6450 mm × 2300 mm × 2540 mm** - Track shoe width: **450 mm** - Track gauge: 1850 mm ## 🦾 Front Working Equipment - Boom length: 3700 mm - Standard stick: 1820 mm - Bucket capacity: **0.33 m³** - Max digging depth: **4640 mm** - Bucket breakout force: 62 kN - Arm breakout force: 46 kN ## 🧪 Hydraulic System - Load-sensing variable piston pump - Main pump max flow: 180 L/min - Main working pressure: 275 bar - **Auxiliary hydraulic (optional dual circuits)**: - AUX1 max flow: **110 L/min** - AUX2 max flow: **40 L/min** - Swing speed: 10.6 rpm ## 🛢️ Tank Capacities - Fuel tank: 115 L - Hydraulic tank: 90 L ## 🚜 Travel System - Max travel speed: 4.8 km/h (high), 2.9 km/h (low) - Max drawbar pull: 76 kN - Gradeability: 30° - Ground pressure: 36.8 kPa ## 📌 Other Key Points 1. **CE Certification**: EU Stage V available with CE (has DPF); older Stage IIIA version without DPF 2. **Fuel Consumption**: General earthwork approx. 6～8 L/h 3. Feature: Compact radius, powerful digging force, good lifting capacity 4. Application: Municipal, trenching, foundation, medium earthwork
