CAT 320 C

Preis ohne MwSt.

Images9

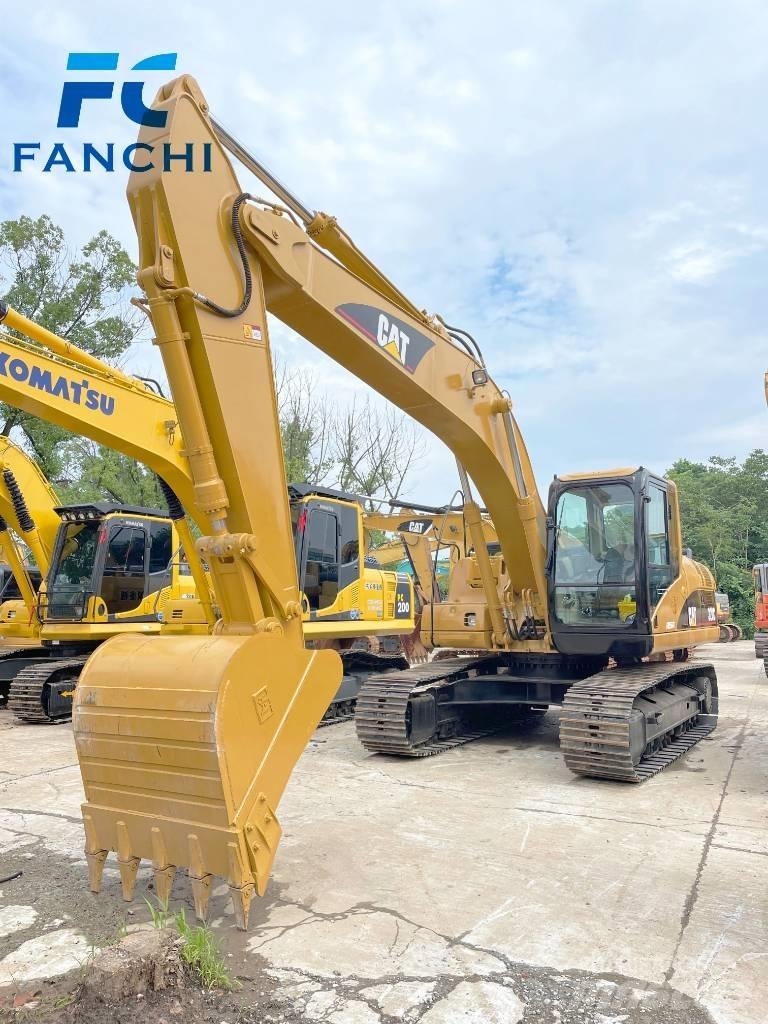

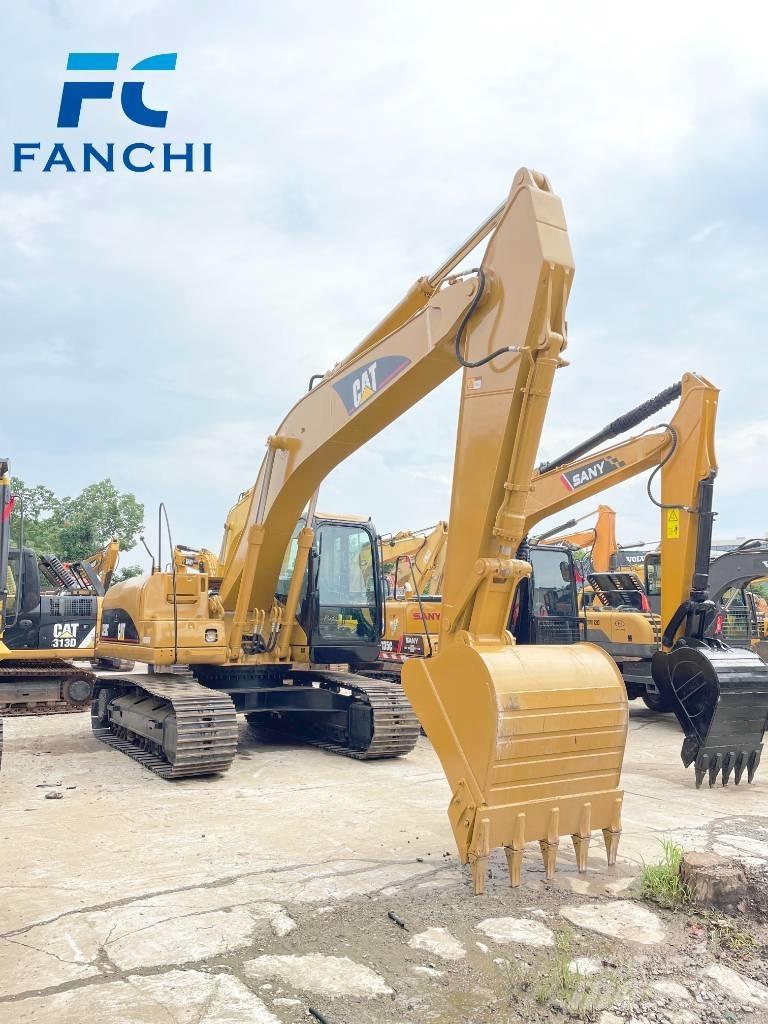

CAT 320 C Raupenbagger
CAT 320 C Raupenbagger
CAT 320 C Raupenbagger
FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Raupenbagger
Marke / Model
CAT 320 C
Baujahr
2024
Betriebsstunden
455 Std.
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
5230FF4E

PREISANGABE

Währung auswählen

DETAILS

Number of previous owners
1
Zustand Laufwerk
good
Dienstgewicht
20.000 kg
Motorleistung
162 kW (220 PS)
Hersteller motor
JAPAN
Schaufelvolumen
1,25 m3
Spurbreite
750 mm
Höchstgeschwindigkeit
8 km/h
Originalfarbe
YELLOW
Hochlöffel-/Schaufelstiellänge
1.820 mm
Garantie
good
Produktionsland
Japan
Lieferbedingungen
FOB, EXW
Zertifikate
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME (American Society of Mechanical Engineers)
Zusatzgeräte
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Zubehör
Ausleger mit Rohrbruchventil -> Sicherheits-Rohrbruchventil - Ausleger/Winde
Hochlöffel mit Rohrbruchventil -> Sicherheits-Rohrbruchventil - Hochlöffel-/Schaufelstiel
Kabelkasten
Skeletteimer
Mehr anzeigen
Zusätzliche Informationen
The Caterpillar Cat320C is a classic medium-sized crawler excavator. Here are some of its common parameter details: General Specifications - Operating weight of the whole machine: Approximately 20,000 kg - Standard bucket capacity: 0.9 - 1.25 m³ Engine - Model: Cat C6.4 - Rated power: Approximately 121 kW (162 hp) / 2000 rpm - Fuel tank capacity: Approximately 454 L - Coolant capacity: Approximately 40 L - Engine oil capacity: Approximately 30 L Performance Parameters - Maximum digging radius: Approximately 9.9 m - Maximum digging depth: Approximately 6.6 m - Maximum unloading height: Approximately 6.7 m - Gradeability: 70% (35°) Travel System - Track shoe width: 600 mm or 750 mm - Gauge: Approximately 2.5 m - Ground pressure: Approximately 45 - 50 kPa Hydraulic System - Main pump type: Variable displacement axial piston pump - System pressure: Approximately 32.4 MPa - Pilot system pressure: Approximately 3.9 MPa - Swing hydraulic motor: Axial piston motor - Travel hydraulic motor: Axial piston motor Cab - Complies with ROPS/FOPS standards: Provides safety protection for the operator. - Equipped with an air conditioning system: Creates a comfortable working environment for the operator.Mehr anzeigen

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
