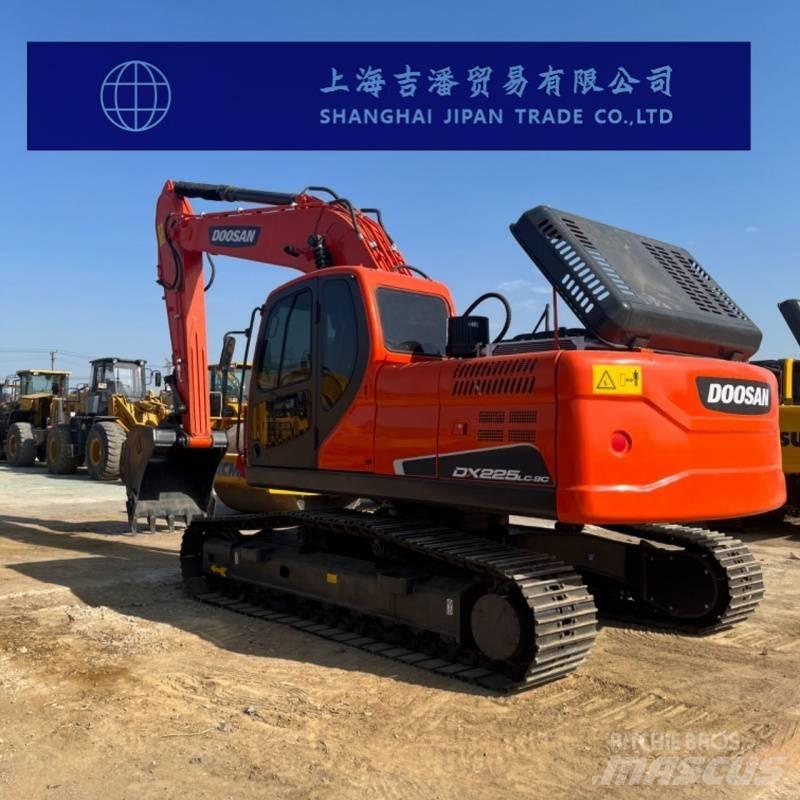

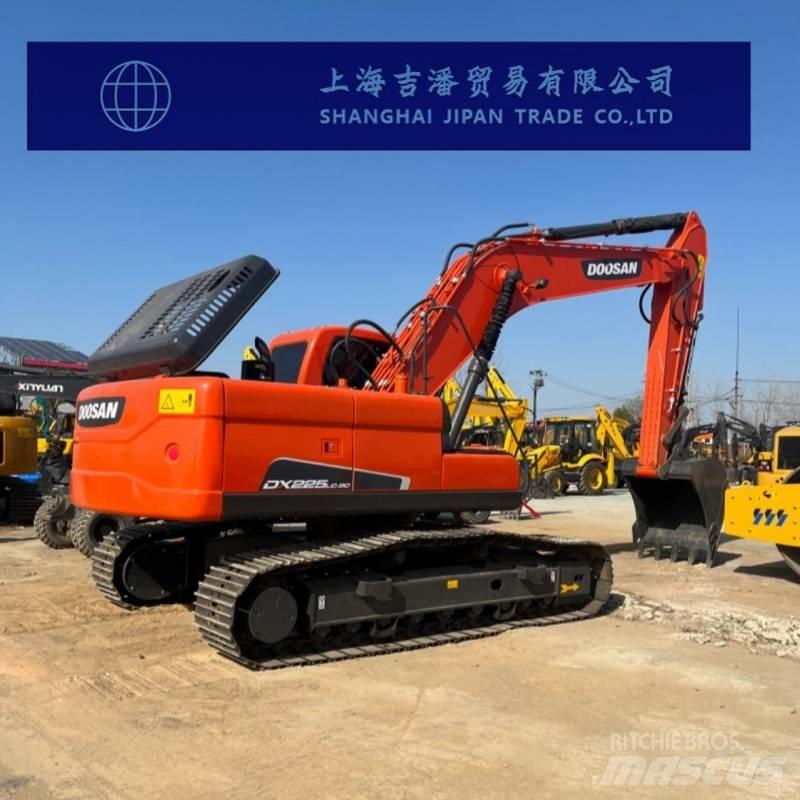

Doosan DX 225
Preis ohne MwSt.
Drucken
INFO
Produktgruppe
Raupenbagger
Marke / Model
Doosan DX 225
Baujahr
2024
Betriebsstunden
500 Std.
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
968E6BD3
PREISANGABE
Währung auswählen
DETAILS
Lagernummer
1
Typ
Diesel
Serien Nr.
1
Number of previous owners
1
Letzte Inspektion
2025-07-08
Zustand Laufwerk
Good Condition
Motor
Original
Dienstgewicht
21.800 kg
Motorleistung
115 kW (156 PS)
Hersteller motor
Original
Amtliches Kennzeichen
1
Emissionsklasse
Emissionsklasse 5 / Tier V
Schaufelvolumen
1,05 m3
Spurbreite
600 mm
Leistung der zusätzlichen Hydraulik
212 l/min
Höchstgeschwindigkeit
5,70 km/h
Transportabmessungen (L x B x H)
9506 x 2990 x 2891 mm
Originalfarbe
Original
Garantie
1 Year
Produktionsland
Südkorea
Lieferbedingungen
FCA, FOB, CIF, EXW
Zertifikate
EPA, CE
Zusatzgeräte
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Zubehör
Ausleger mit Rohrbruchventil -> Sicherheits-Rohrbruchventil - Ausleger/Winde
Hochlöffel mit Rohrbruchventil -> Sicherheits-Rohrbruchventil - Hochlöffel-/Schaufelstiel
Kabelkasten
Klimaanlage
Zusätzliche Hydraulik
Motorvorfilter
Skeletteimer
Massa schakelaar
Rundumkennleuchte
Standkachel
Joystick-Steuerung
Standard Tieflöffel
Kabeleimer
V Ditch bucket
Zusätzliche Informationen
Parameter configuration of Doosan DX225LC-9C excavator
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)22
The working weight of the entire machine (kg) is 21,800
Bucket capacity (m³) : 1.05 m³
Boom length (mm) : 5700
The length of the boom (mm) is 2900
Performance
Rotational speed (rpm) : 10.5
Walking speed (km/h)5.7/3.1
Ground specific pressure (Kpa)44
Bucket digging force (kN)152
The digging force of the boom (kN) is 108
Power system
Engine model: DL06
Rated power (kw/rpm) : 115 (154 HP) / 1,900
Number of cylinders (6
Cylinder diameter × stroke (mm) : 100 *125
The form of work is listed directly
Hydraulic system
The maximum flow rate of the main pump (l/min) is 2 X 212/min
Oil capacity
Fuel tank (L)400
Hydraulic System (L)195
Main body size
Total transportation length (mm) : 9,506
The total transportation width (mm) is 2,990
The total transportation height (mm) is 2,891
The total height of the cab (mm) is 832
Boarding width (mm) : 1,008
Total track length (mm) : 4,440
Track plate width (mm) : 600
Total width of the tracks (mm) : 2,990
Minimum ground clearance (mm)475
The ground clearance of the counterweight (mm) is 1,096
The minimum turning radius (mm) of the front working device is 562
Rear end turning radius (mm) : 2,794
Scope of work
Maximum excavation radius (mm) : 9,873
The maximum excavation radius (mm) of the shutdown face is 9,699
Maximum excavation depth (mm) : 6592
Maximum excavation height (mm) : 9,616
Maximum unloading height (mm) : 6,830
Maximum vertical excavation depth (mm) : 3,929
Maximum effective excavation depth (mm) : 6,411
