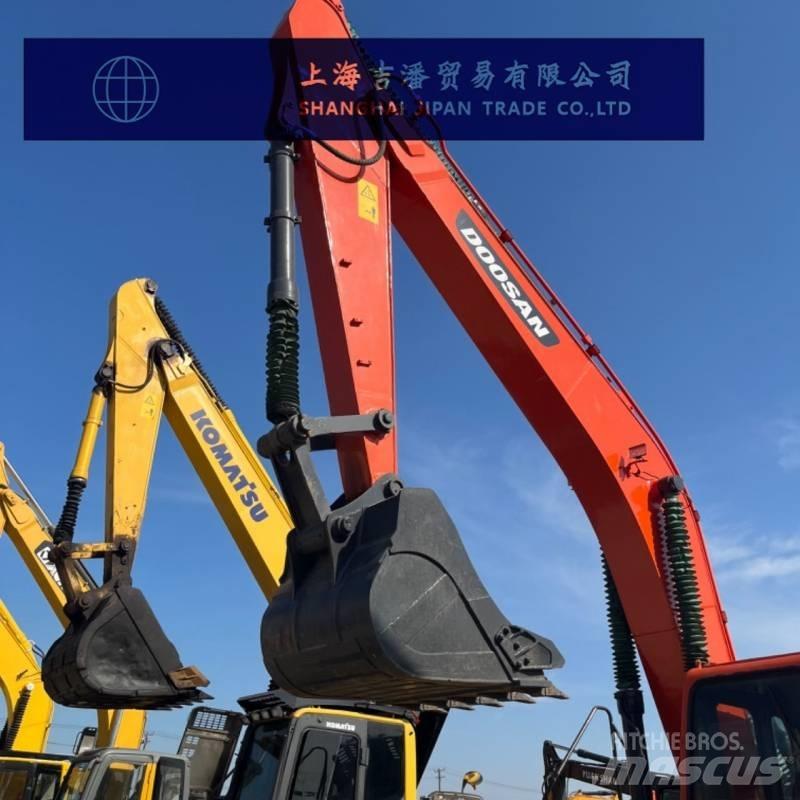

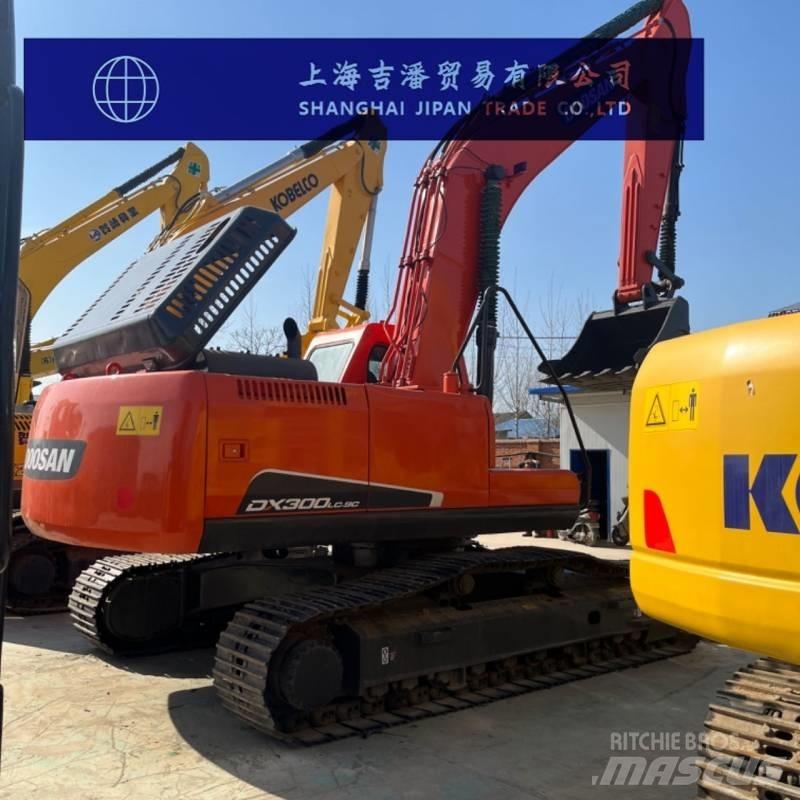

Doosan DX 300

Preis ohne MwSt.

FavoriteFavoriten
shareTeilen
Save searchSuche speichern
Drucken

INFO

Produktgruppe
Raupenbagger
Marke / Model
Doosan DX 300
Baujahr
2024
Betriebsstunden
600 Std.
Land
China
Allgemeine Bewertung
1
2
3
4
5
Mascus ID
830BAC40

PREISANGABE

Währung auswählen

DETAILS

Lagernummer
1
Typ
Diesel
Serien Nr.
1
Number of previous owners
1
Letzte Inspektion
2025-07-07
Zustand Laufwerk
Good Condition
Motor
Original
Dienstgewicht
30.215 kg
Motorleistung
159 kW (216 PS)
Hersteller motor
Original
Amtliches Kennzeichen
1
Emissionsklasse
Emissionsklasse 5 / Tier V
Schaufelvolumen
1,60 m3
Spurbreite
600 mm
Leistung der zusätzlichen Hydraulik
248 l/min
Höchstgeschwindigkeit
5,70 km/h
Transportabmessungen (L x B x H)
10615 x 3199 x 3515 mm
Originalfarbe
Original
Hochlöffel-/Schaufelstiellänge
3.100 mm
Garantie
1 Year
Produktionsland
Südkorea
Lieferbedingungen
FCA, FOB, CIF, EXW
Zertifikate
EPA, CE
Zusatzgeräte
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Zubehör
Ausleger mit Rohrbruchventil -> Sicherheits-Rohrbruchventil - Ausleger/Winde
Hochlöffel mit Rohrbruchventil -> Sicherheits-Rohrbruchventil - Hochlöffel-/Schaufelstiel
Kabelkasten
Klimaanlage
Mehr anzeigen
Zusätzliche Informationen
Parameter configuration of Doosan DX300LC-9C excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)30 The overall working weight of the machine (kg) is 30,215 Bucket capacity (m³) : 1.45/1.6 Boom length (mm) : 6245 The length of the boom (mm) is 3100 Performance Rotational speed (rpm) : 9.4 Rotary torque (Nm)11760 Walking speed (km/h) 5.7/3.2 The ground pressure (Kpa) is 0.57 kg/cm ² Bucket digging force (kN) : 183.3 The digging force of the bucket arm (kN) is 128.4 Power system Engine model: DL08 Rated power (kw/rpm) 159/1,900 Number of cylinders (6 Cylinder diameter × stroke (mm)108 *309 Hydraulic system The main pump type is a variable piston pump The maximum flow rate of the main pump (l/min) is 2*248 Oil capacity Fuel tank (L)500 Hydraulic oil tank (L)280 Main body size Total transportation length (mm) : 10,615 The total transportation width (mm) is 3199 The total transportation height (mm) is 3,515 Total track length (mm) : 4,940 Track plate width (mm) : 600 Total width of the tracks (mm) : 3,200 Minimum ground clearance (mm) : 506 The ground clearance of the counterweight (mm) is 1,150 Rear end turning radius (mm) : 3,188 Number of idler wheels (single side) (units)9 Number of idler wheels (single side) (units)2 Number of track plates (single side) (pieces)48 Scope of work Maximum excavation radius (mm) : 10702 The maximum excavation radius of the shutdown face (mm) is 10506 Maximum excavation depth (mm) : 7275 Maximum excavation height (mm) : 10315 Maximum unloading height (mm) : 7303 Maximum vertical excavation depth (mm) : 4907 Maximum effective excavation depth (mm) : 6,455

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
