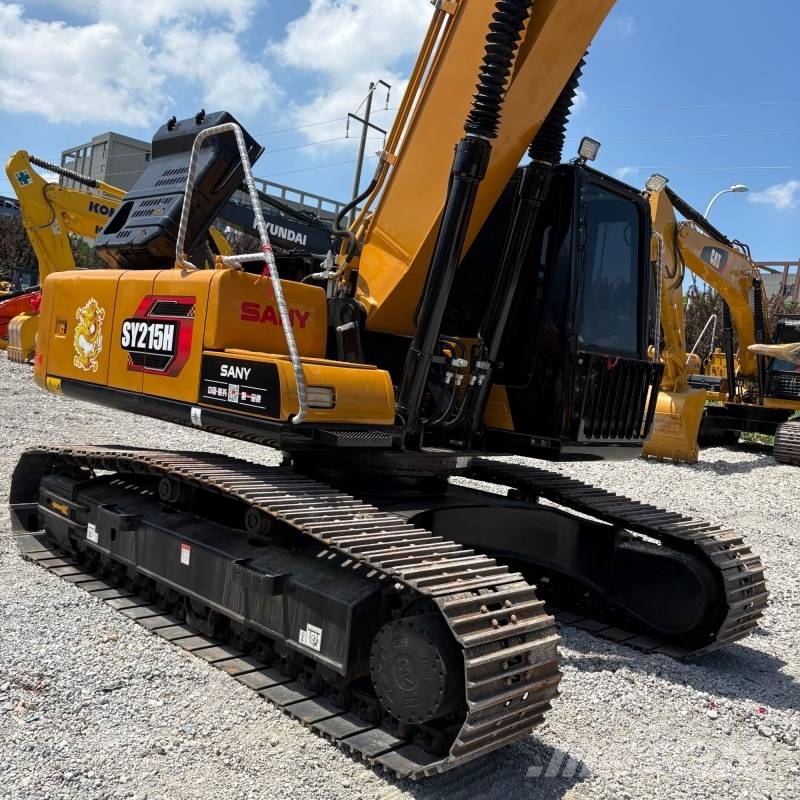

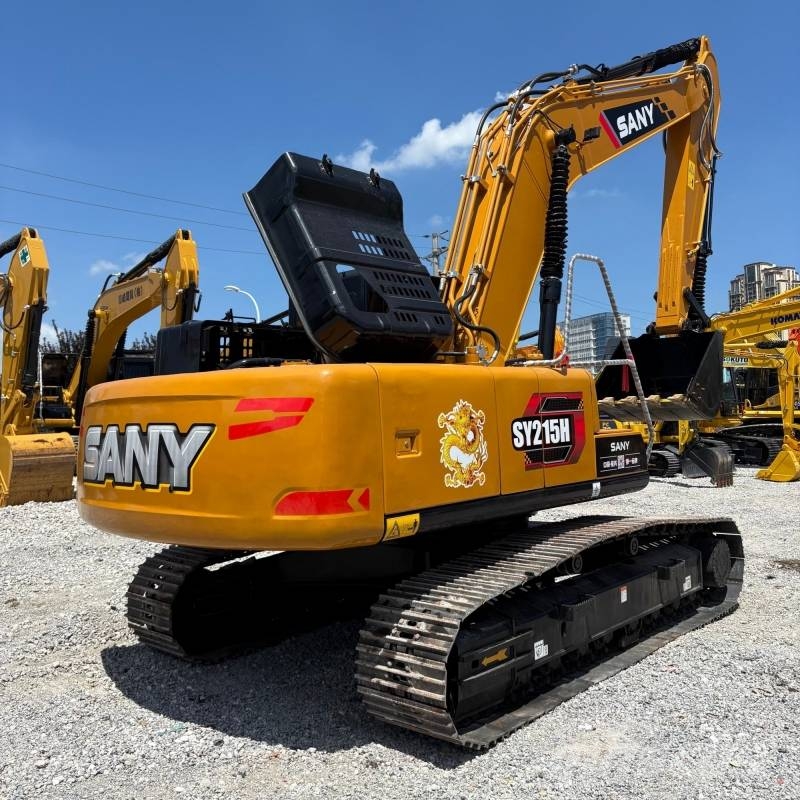

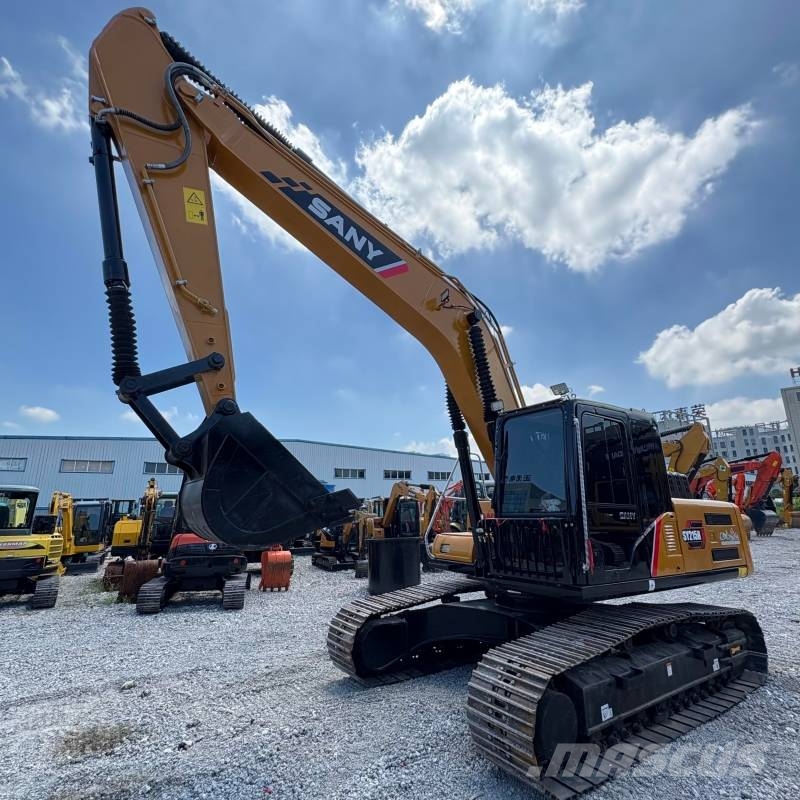

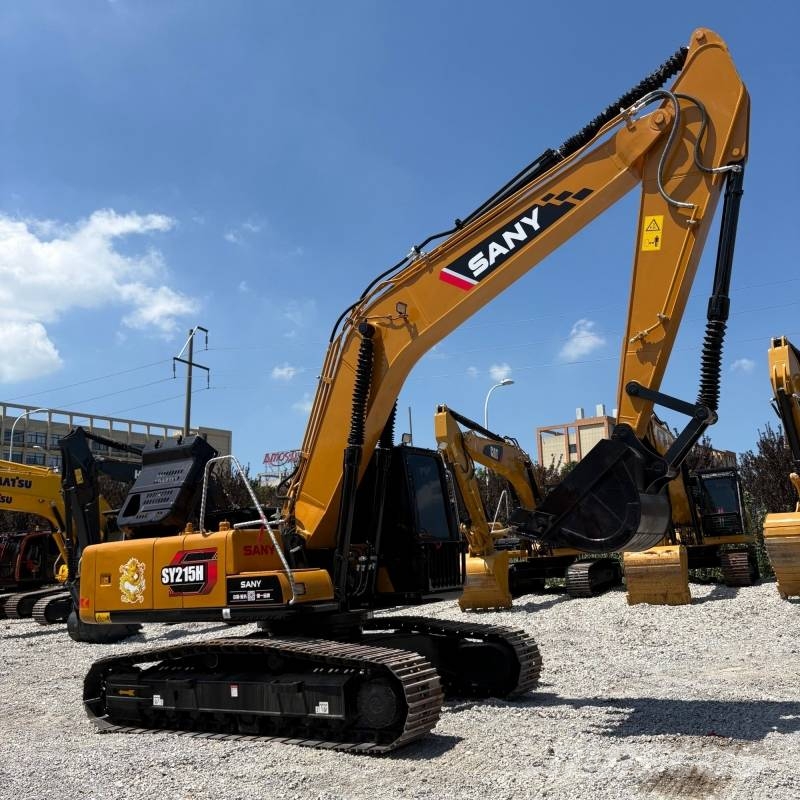

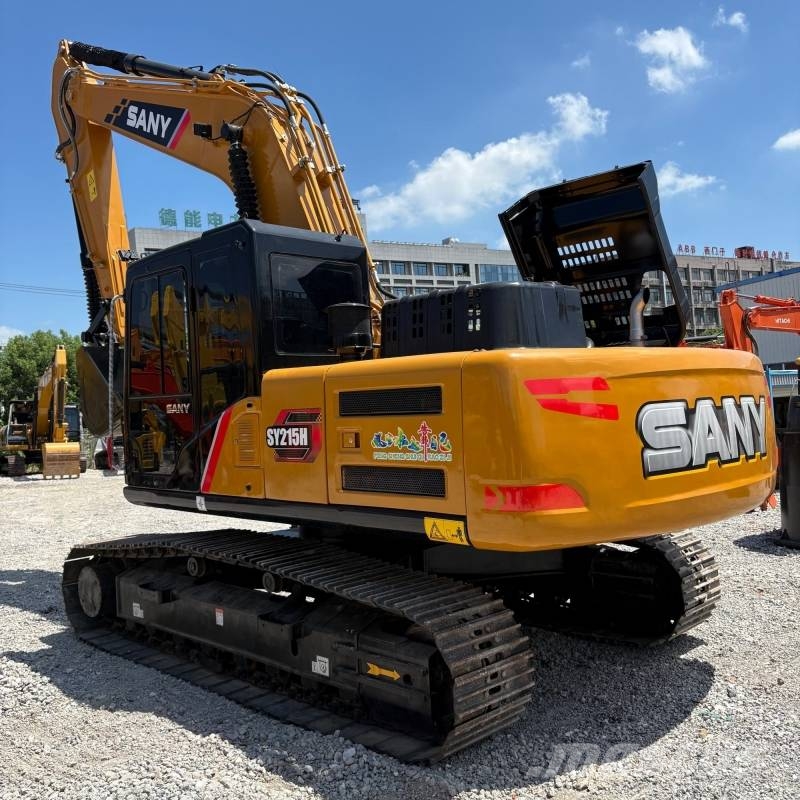

Sany SY 215 H

# SANY SY215H Crawler Excavator Specifications Model: SANY SY215H Operating Weight: 21900 kg Bucket Capacity: 1.1 m³ Transport Dimensions (L×W×H): 9680 × 2980 × 3440 mm Track Shoe Width: 700 mm Travel Speed (High/Low): 5.4 / 3.3 km/h Swing Speed: 11 rpm Bucket Digging Force: 138 kN Arm Digging Force: 103 kN Max Digging Depth: 6600 mm Max Digging Radius: 10280 mm Max Dumping Height: 6730 mm Max Digging Height: 9600 mm Ground Clearance: 440 mm Ground Pressure: 47.4 kPa ## Engine Engine Model: Isuzu 4HK1 Rated Net Power: 133 kW / 2000 rpm Max Torque: 580 N·m /1600 rpm Displacement: 5193 cc Cylinders: 4 in-line, turbocharged with intercooler Fuel Tank Capacity: 340 L ## Hydraulic System Hydraulic Type: Kawasaki load sensing hydraulic system Main Pump Max Flow: 444 L/min Max Working Pressure: 34.3 MPa
