INFO

Produktgruppe
Schwere Bohrgeräte
Marke / Model

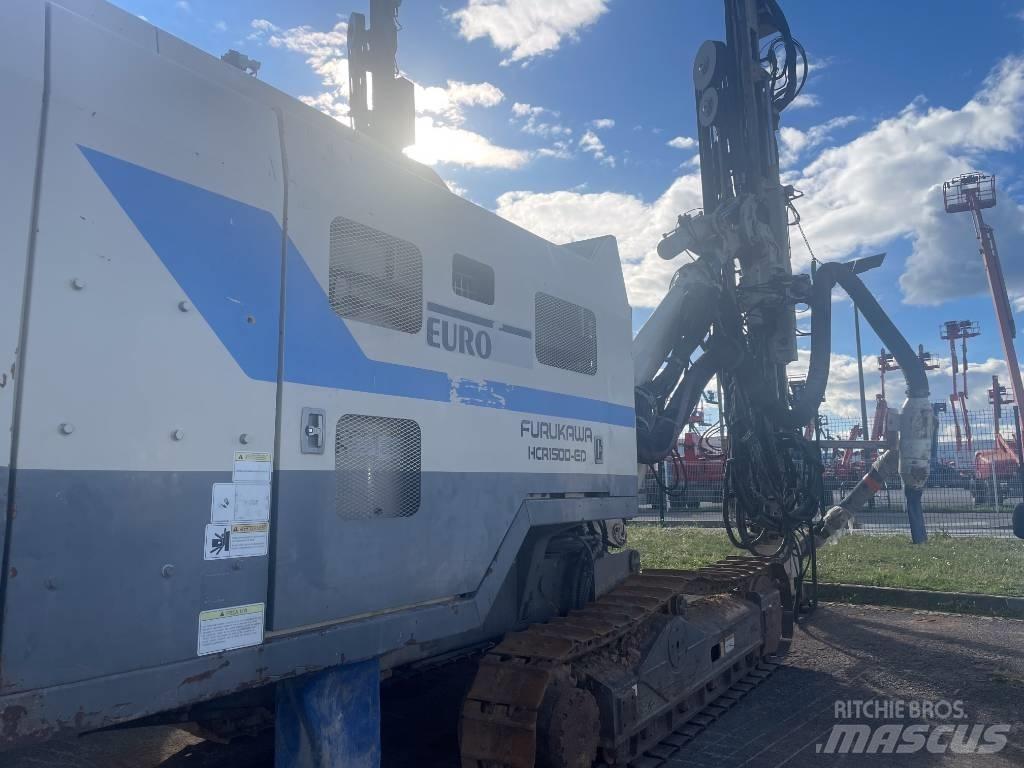

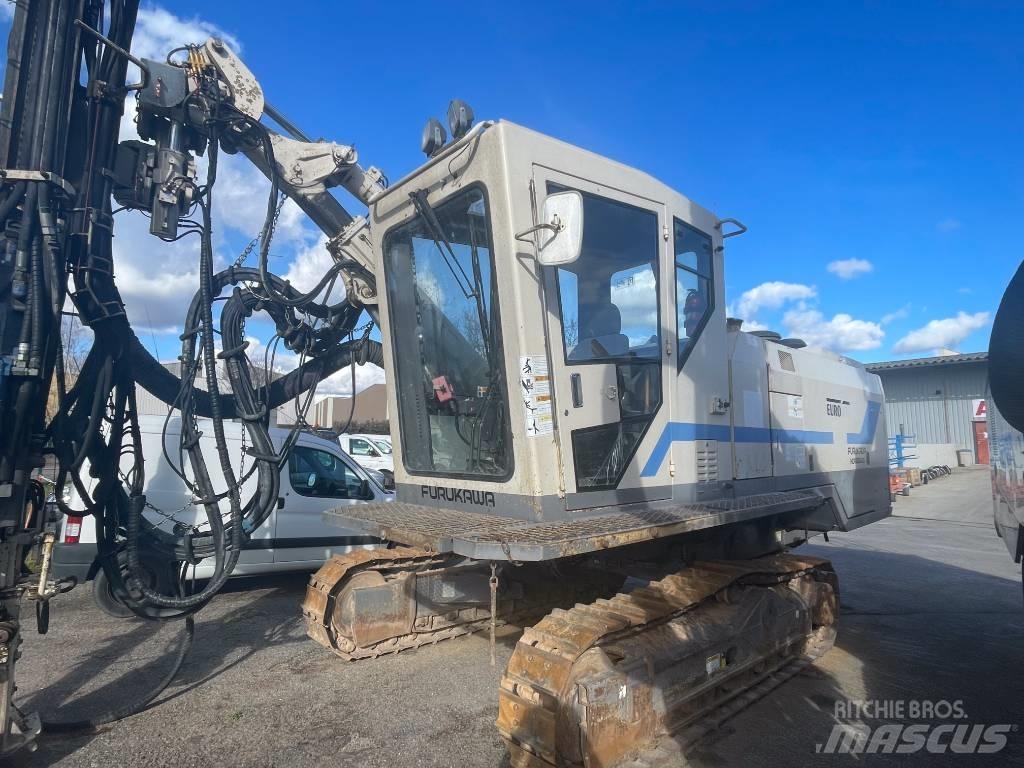

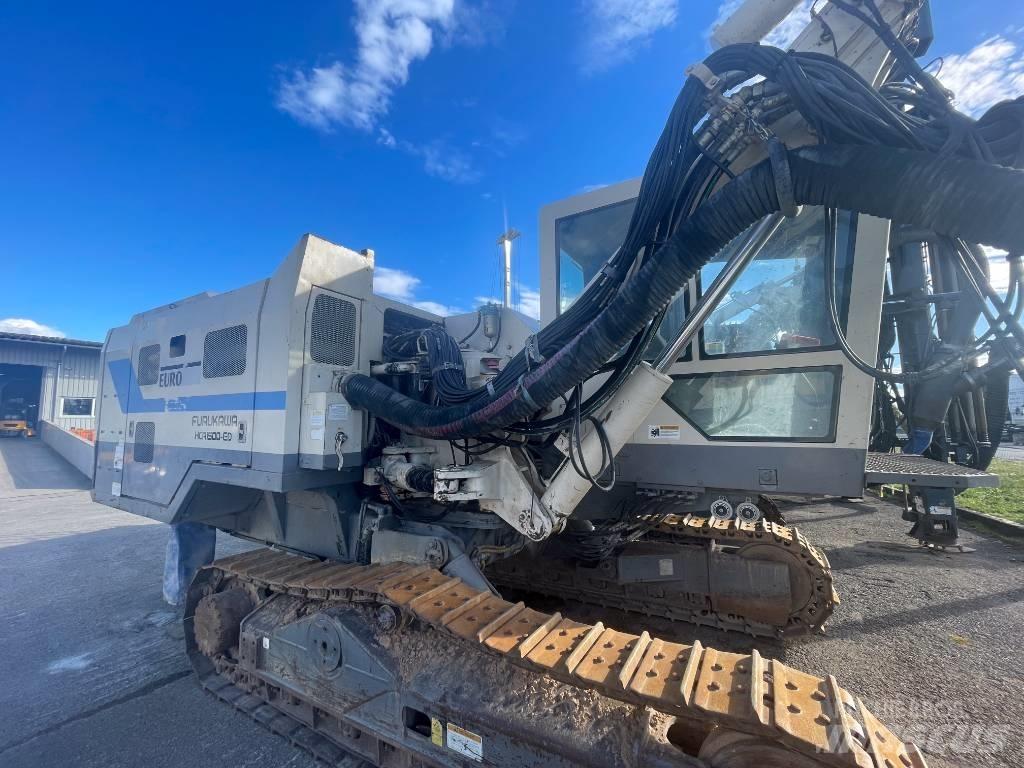

Furukawa HCR 1500 ED
Baujahr
2006
Betriebsstunden
2.445 Std.
Maschinen Standort
Chassieu, Auvergne-Rhône-Alpes
Land
Frankreich
Mascus ID
220ADC7F

PREISANGABE

Währung auswählen

DETAILS

Motor
C9
Hersteller motor
Caterpillar
Kabinentyp
Geschlossene Kabine
Kompressorleistung
13,5 m3/min
Kompressorausführung
PDSF290-S15B-AIRMAN
Produktionsland
Japan
Lieferbedingungen
EXW
Zusätzliche Informationen
Year 2006 - Work: 5 892 hours - Hammer: 2 445 hours (standard engine changed at 5 000 hours) Weight and dimensions Weight: 15 500 kg Length: 10 050 mm Width: 3 725 mm Height: 3 185 mm Hammer HD715 Weight: 250 kg Striking frequency: 2 150 min-1 Rotation speed: 0 - 150 min-1 Crawler Ground clearance: 565 mm Oscillation agle: ±10° Speed: 0 - 3,8 km/h Maximum gradient: 58% Engine Caterpillar C-9 Power and speed: 261 / 2 200 kW/rpm Compressor PDS290-S15B-AIRMAN Airflow: 13,5 m3/min Pressure: 1,03 MPa Boom Tilt angle low-high : 45-20° Tilt angle right-left : 35-7° Extension stroke : 900 mm Mast Length : 8 000 mm Advance to the rock : 1 500 mm Pullback force : 31 kN Barrel Capacity: 6+1 rodsMehr anzeigen

EUROFOR

55, rue Ampère 69684 Chassieu Auvergne-Rhône-Alpes Frankreich
