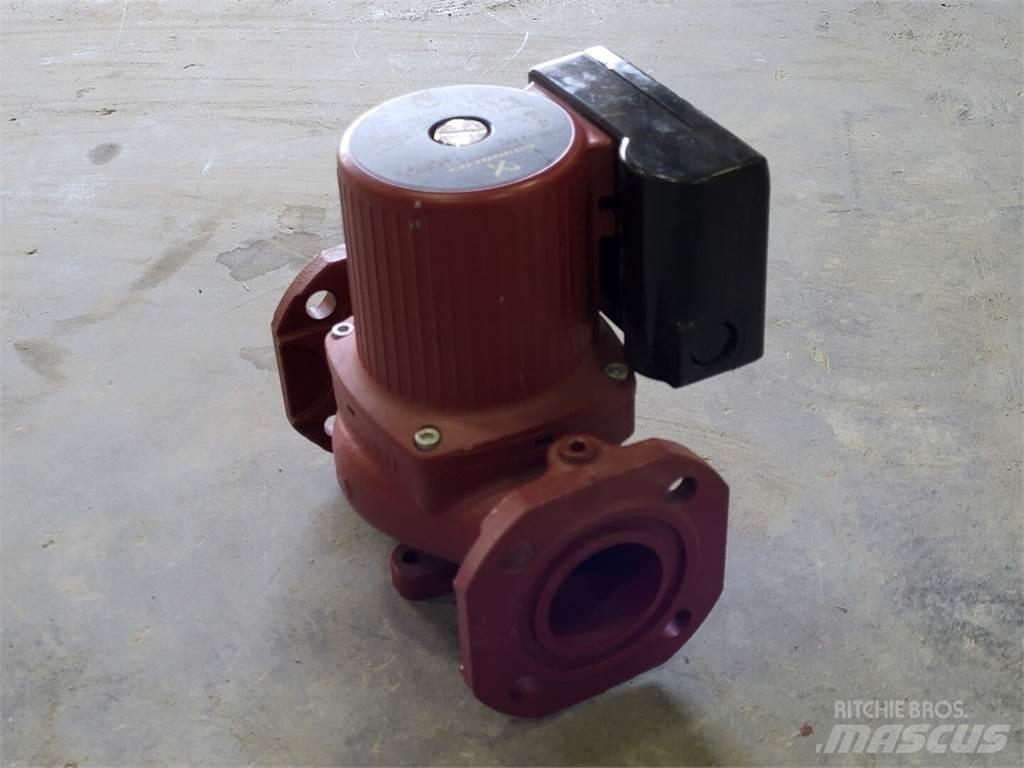

3-Speed Circulator Pump UPS50-60F
Title: 3-Speed Circulator Pump UPS50-60F
SKU: 137487

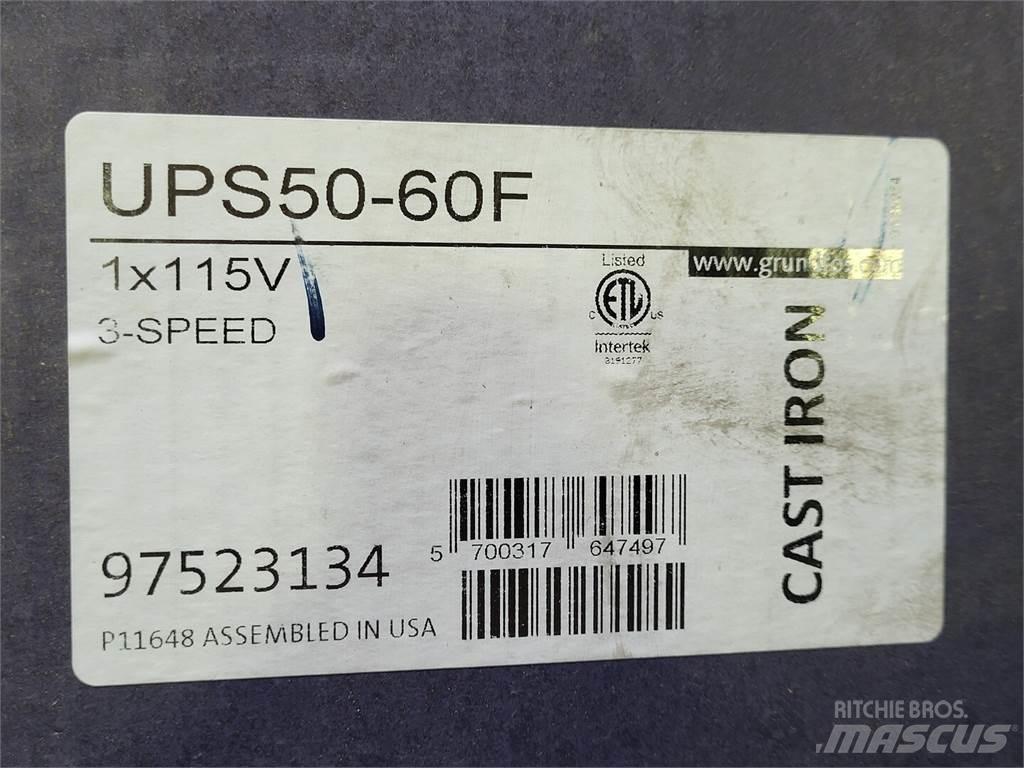

Model: UPS50-60F
Condition: Surplus New
S/N: 97523134
GeneralHorsepower:1/2hp
Pump Material:Cast Iron
ElectricalVoltage:115volts
Dimensions: 12.00 (H) x 12.00 (W) x 12.00 (L) inches
Technical
Speed Number: 3
Rated flow: 62 US gpm
Max flow: 124 US gpm
Rated head: 12.74 ft
Maximum head: 21.33 ft
Installation
Maximum ambient temperature:104 °F
Ambient max at 176°F liquid: 176 °F
Maximum operating pressure: 145.04 psi
Type of connection: 4-BOLT FLANGE
Pipe connection: 4 - Bolt Flange
Pressure rating for connection: PN 10
Port-to-port length: 8 9/16 in
Electrical data
Power input in speed 1: 0.3487 HP
Power input in speed 2: 350 W
Max. power input: 395 W
Main frequency: 60 Hz
Rated voltage: 1 x 115 V
Current in speed 1: 2.7 A
Current in speed 2: 3.4 A
Current in speed 3: 3.6 A
Capacitor size - run: 40 F/180 V
Number of poles: 2
Insulation class (IEC 85): H
Thermal protect: internalMehr anzeigen
