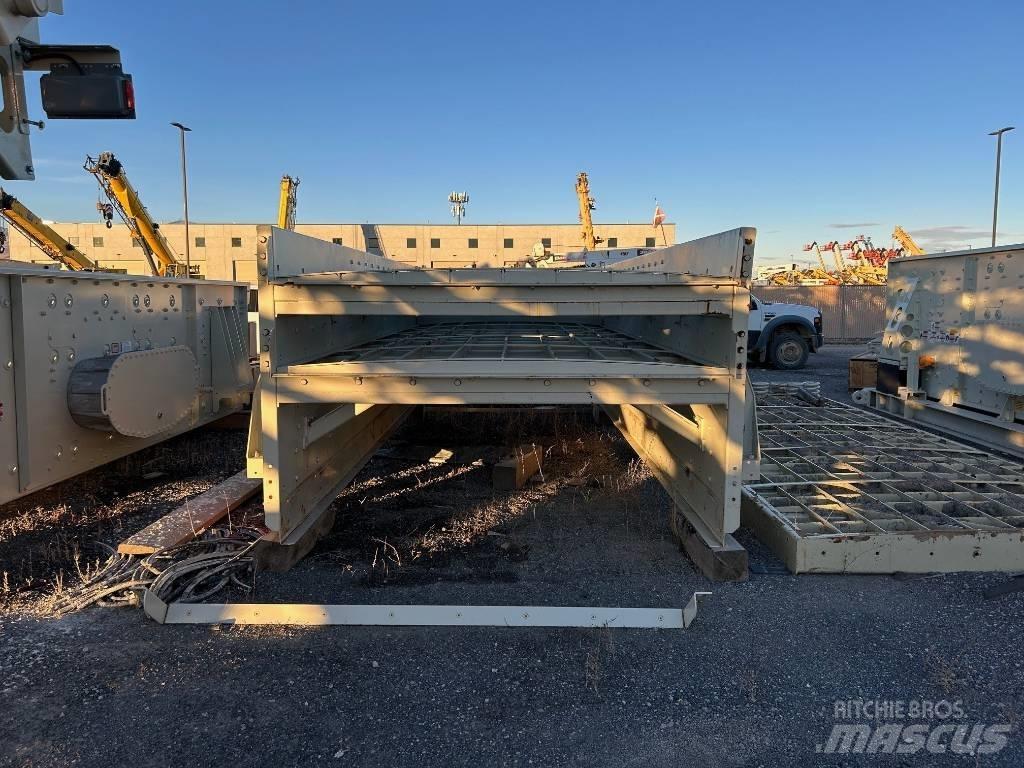

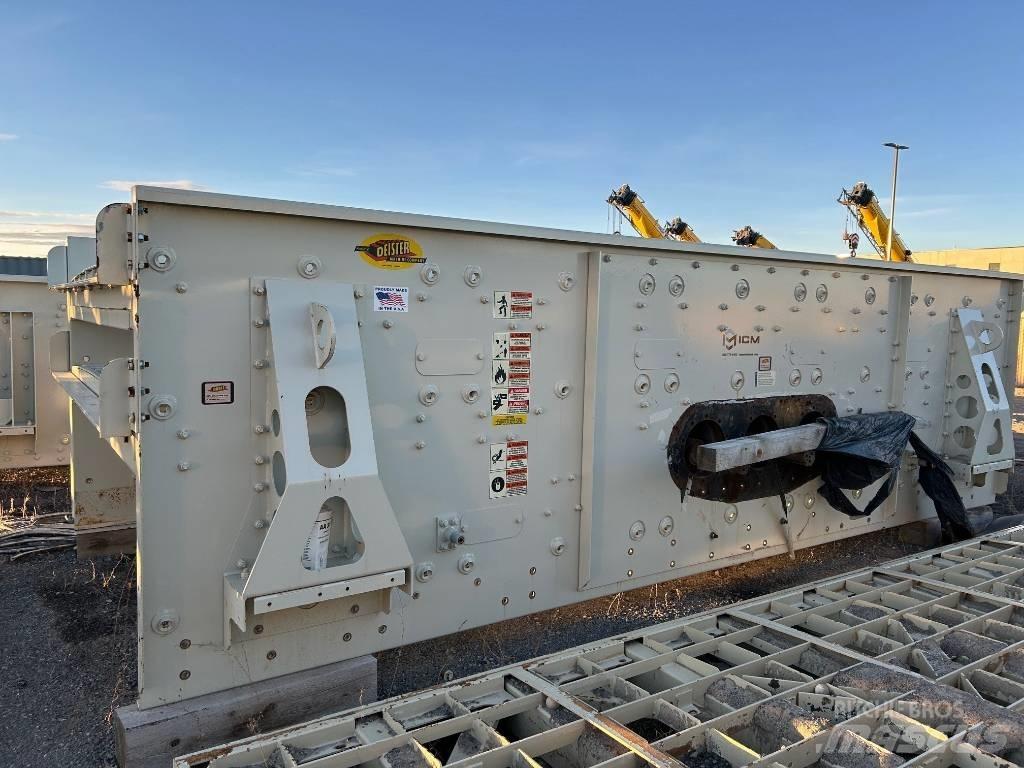

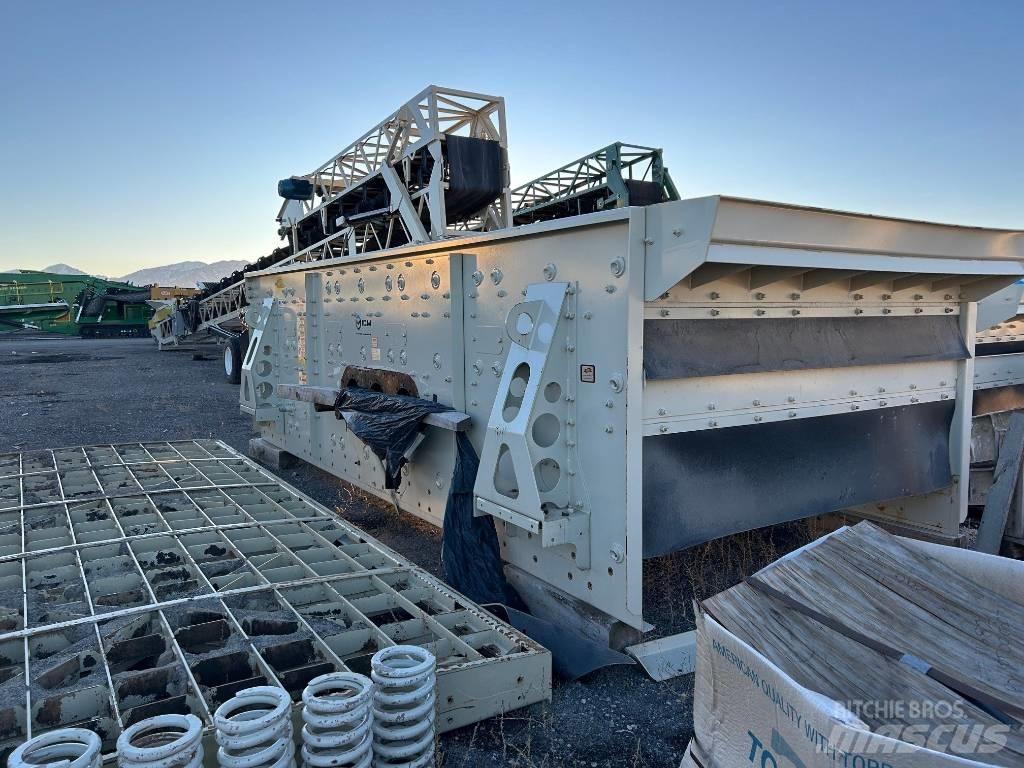

2021 Deister 8x20 3 Deck Horizontal Screen (Type TFM3P-3820)
8X20 3 DECK ONE TYPE TFM3P-3820 1
TRIPLE SHAFTED HORIZONTAL SCREEN 1
VIBRATING FRAME - TRUNNION TYPE 1
SCREEN SUPPORT MOUNT ON EACH 1
CORNER, SNUBBERS (FRICTION CHECK 1 SCREEN
1/4 THICK HSLA STEEL SIDEPLATES 1
FORMED ALONG THE TOP AND BOTTOM 1
WITH 5/16" THICK FORMED HSLA 1
STEEL REINFORCING PLATES BOLTED 1
TO SIDEPLATES BETWEEN BEARING 1
HOUSING AND SIDEPLATES 1
ACCESS PORTS WITH COVER PLATES 1
REMOVABLE BACK PLATES, RUBBER 1
FLAP AND STEEL COMBO 1
SCREEN MEDIA SUPPORT PANEL 1
TOP DECK - SCREEN CLOTH SUPPORT 1
MID DECK - SCREEN CLOTH SUPPORT 1
BOT DECK - SCREEN CLOTH SUPPORT 1
4" LONG DISCHARGE LIPS PROTECTED 1
BY 1/4 THICK AR STEEL REPLACE 1
ABLE WEAR PLATES 1
TENSION PLATES (SKIRTBOARDS) 1
DEISTER HEAVY DUTY TENSION 1
SCREEN CLOTH TENSIONS DEVICE 1
FEED BOX WITH 1/4" AR STEEL 1
REPLACEABLE WEAR PLATE IN THE 1
BOTTOM 1
TRIPLE SHAFT GEAR TYP VIBRATING 1
MECHANISM LOCATED BETWEEN THE 1
MIDDLE AND BOTTOM DECKS WITH 1
120 MM SPHERICAL ROLLER BEARINGS 1
STEEL FLANGED VIBRATING TUBES 1
BOLTED TO THE SIDEPLATES 1
OIL FILL AND DRAIN PLUGS AND 1
THE OIL LEVEL GUAGES LOCATED 1 ACCENTRIC
ON THE OUTSIDE SURFACE OF THE 1
VIBRATING MECHANISM END COVERS 1
PLATE 1
DEISTER SLINGER MIST OIL BATH 1
LUBE SYSTEM, 3.5 GALLONS OF OIL 1
SERVICE AT 500 HOURS 1
VIBE MECHANISM TUBE IS PROTECTED 1
BY A 3/8" THICK STEEL BACKED 1
RUBBER SHEILD TACK WELDED TO THE 1
TUBE 1
ECCENTRIC SHAFTS WITH ADJUSTABLE 1
WEIGHTS FOR STROKE ADJUSTMENT 1
BRONZE SLEEVE BETWEEN BEARING 1
AND SHAFT 1
DESITER HEAVY DUTY RUBBER TORSIO 1 DRIVE
PIVOTED MOTOR BASE, LESS MOTOR 1
SUPPORT, 5V SECTION WIDEBAND 1
V BELT AND MOTOR SHEAVE 1
LESS THE BELT DRIVE GUARD
HORIZONTAL TYPE 1 SCREEN
790 RPM
11/16" STROKE
SCREEN MOTOR 60 HP 1800RPM
ESTIMATED WIEGHT 24300LBS
RUBBER FLAP SPRING PROTECTORS
SNUBBER GUARDSMehr anzeigen
