Zusätzliche Informationen
BOOM DETAILS

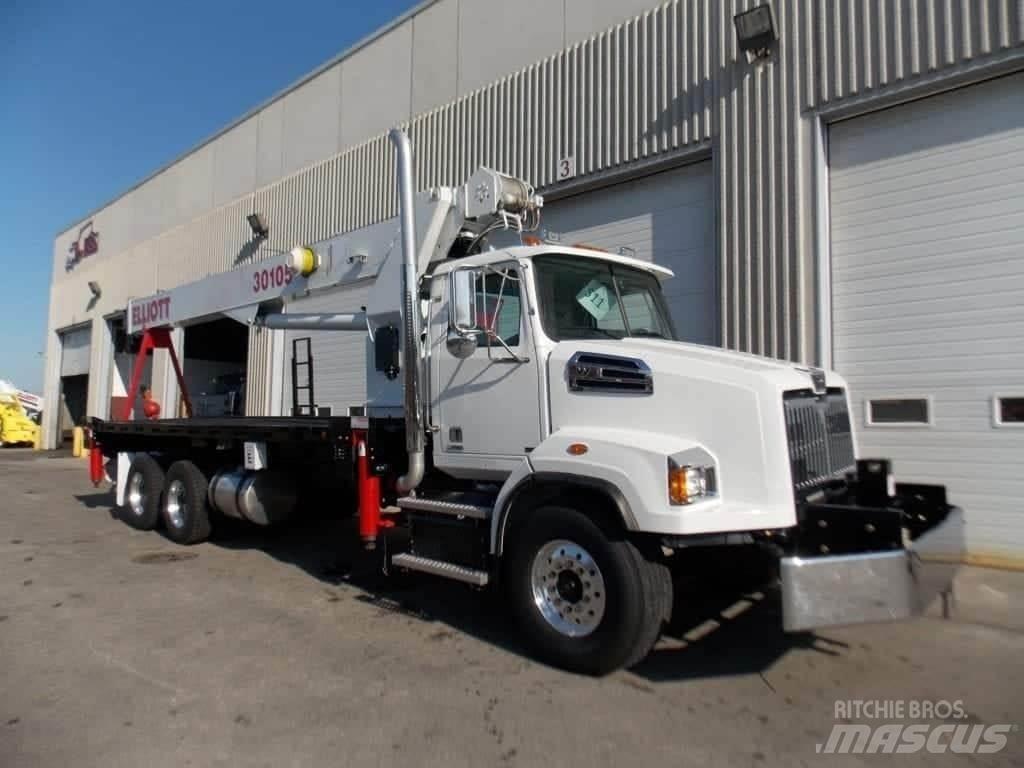

NEW ELLIOTT MODEL 30105F
– 30-Ton Capacity ... 5
ft
Load Radius
31’ – 105’ High Strength 4-Section Boom
117
ft
Sheave Height Fully Extended – 3-Sheave Head
372 Degree Non-Continuous Rotation
2 Sets
Hydraulic Out & Down Outriggers – 20
ft
Span Each C/W Removable Ball Socket Aluminum Pads
120-Gallon Hydraulic Oil Tank
Independent Individual Outrigger Controls – Mid and Full Span Outrigger Options

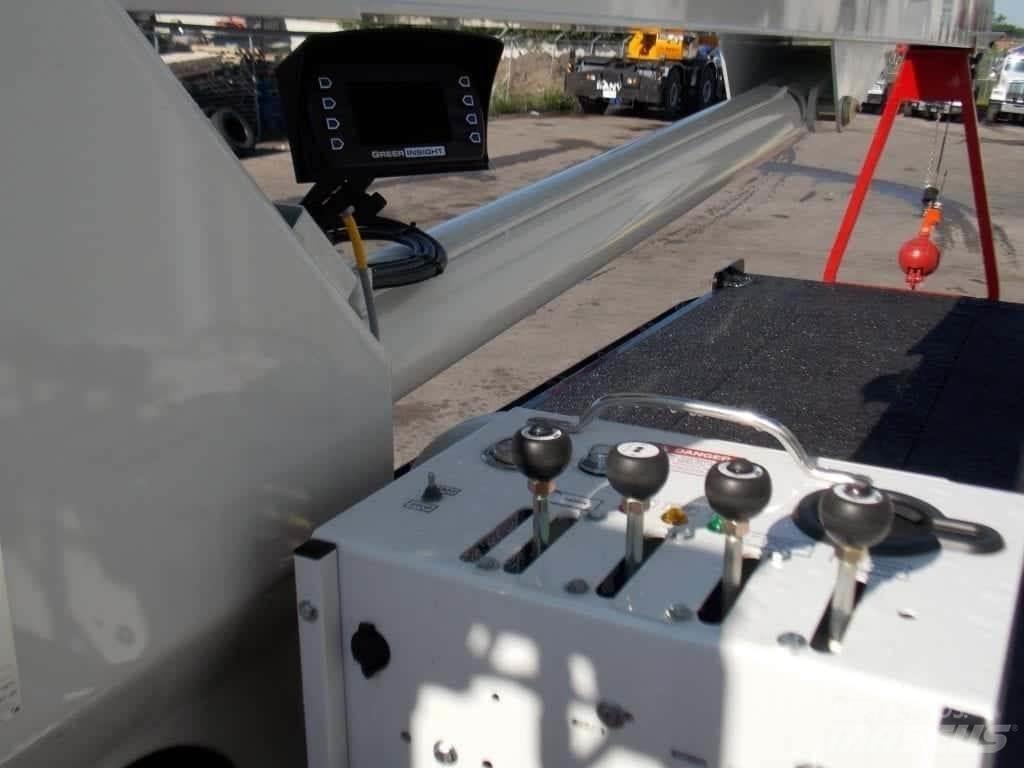

Stand-up Operator Console & Platform – Rotates with Turret
9/16” Diameter Rotation-Resistant Wire Rope – 425
ft
w
/ 4-Sheave Boom Head, Downhaul Ball w/Swivel Hook
12,700
lb
Planetary Burst of Speed Bare Drum Pull Winch w/ 9,060
lb
Single Line Pull
Anti-Two Block Device and Load Moment Indicator w/Hydraulic Overload Lockout
TRUCK DETAILS
NEW WESTERN STAR 4700 T/A TRUCK
Detroit Diesel DD13 – 470 HP Engine – 1,650
ft
/
lbs
Torque with Jake Brake
Eaton
Ultrashift
Plus 18-Spd Automated Trans
4.33 Rear Axle Ratio, Double Frame, 270” Wheel Base
20,000
lbs
Steer Front Axle on 425/65/R22.5 Tires
40,000
lbs
Rear Axle on
Tuftrac
Suspension with 11R22.5 Tires, 54″ Spread
60,000
lbs
GVWR
Included Options
:
AM/FM Stereo,
A/C,
60 & 80-Gallon Fuel Tanks,
Power Windows,
Power Locks,
Heated Mirrors,
Aluminum Front & Rear Rims, Chrome Bumper
DECK DETAILS
NEW 22’ STEEL FLAT DECK
Steel Deck with Rubberized Top Coating on Surface
Reflectors and Side Lights as Required by DOT Standards
