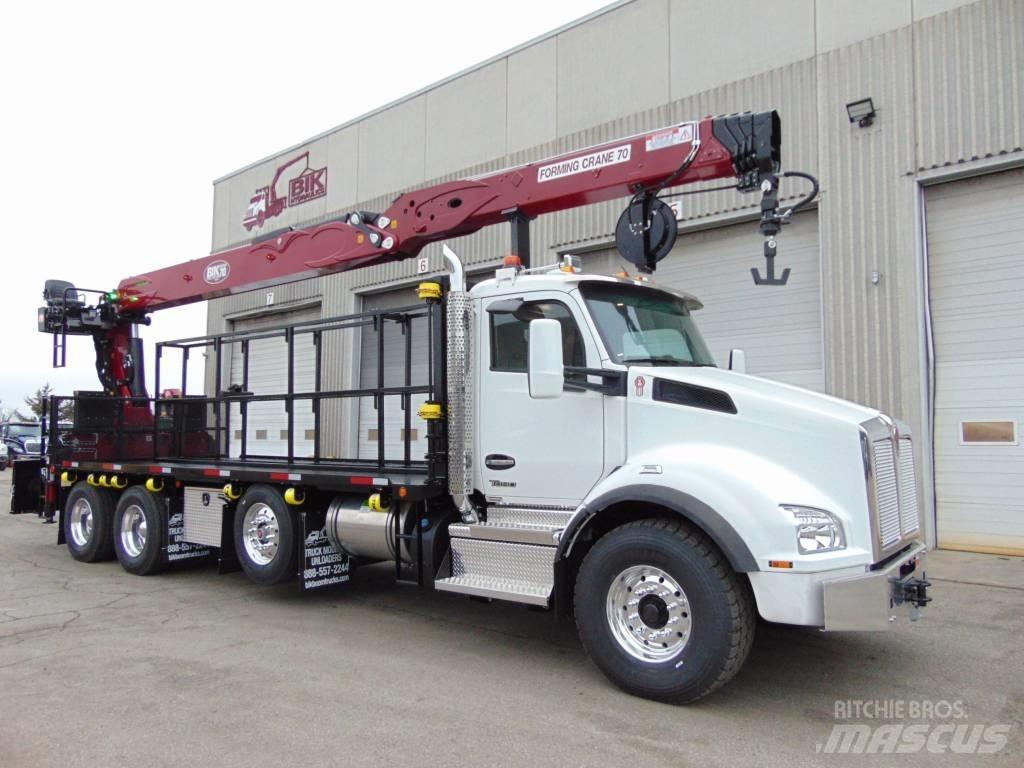

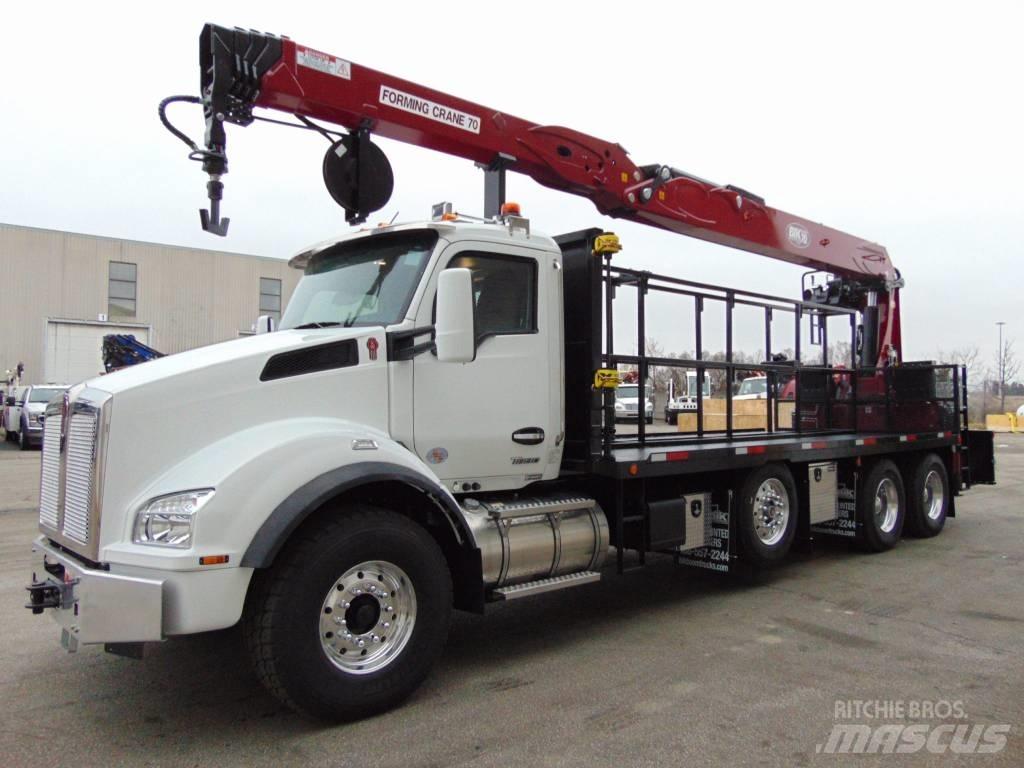

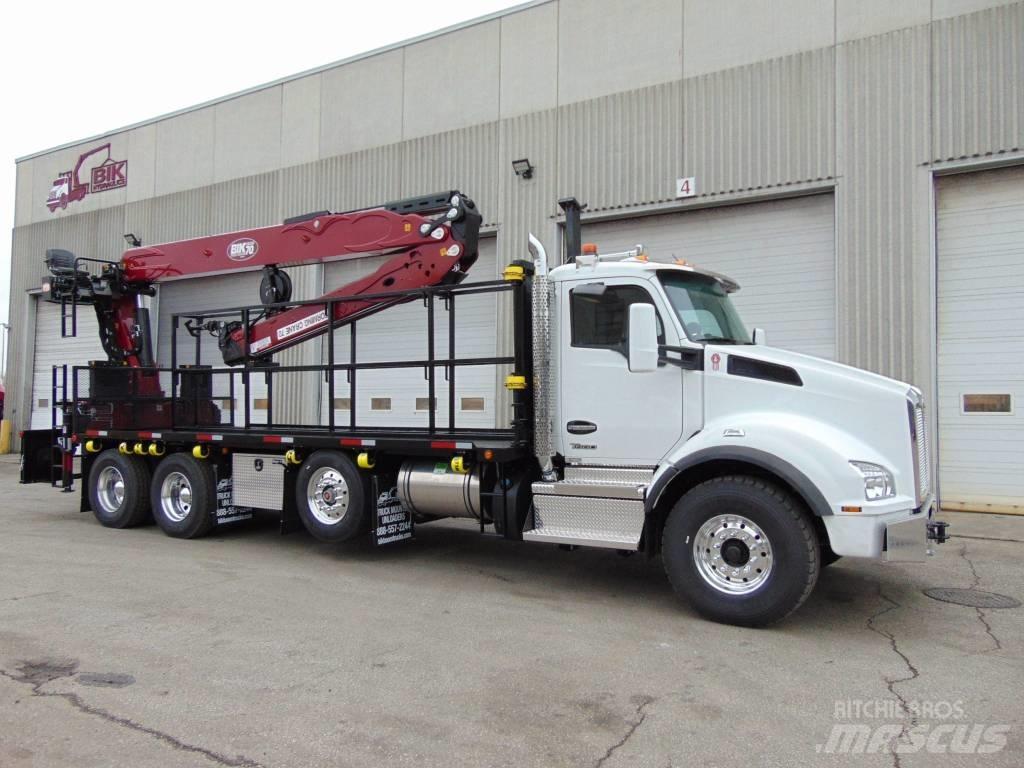

BIK FC-70

Name: BIK FC-70
Brand: BIK
SKU: 71802990
Availability: InStock

Preis ohne MwSt.

Preis auf Anfrage

Favoriten

Suche speichern

Drucken

INFO

Produktgruppe

Andere Fahrzeuge

Marke / Model

BIK FC-70

Baujahr

2025

Zustand

Neu / nicht gebraucht

Maschinen Standort

Milford, Massachusetts

Land

USA

Mascus ID

71802990

DETAILS

Typ

Diesel

Motorleistung

357 kW (485 PS)

Hersteller motor

PACCAR

Getriebe

Eaton Ultrashift Plus Automated 18 spd

Bereifung vorne

425 / 65R22.5

Zusätzliche Informationen

Boom Details NEW – BIK SERIES FORMING CRANE FC-70 UNLOADER 4 Hyd. Extensions to 70’ Horizontal Reach rearward with reverse turret mount Horizontal Capacities are: 10,340 lb @ 22’ 4,300 lb @ 45’ 2,600 lb @ 60’ 2,250 lb at max reach Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard Dual Planetary Gear Drive continuous rotation for maximized slewing torque and power for extreme grades Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers Hydraulic Oil Coolers, High Pressure Return Filter and min 40-gallon oil tank for boom. Under Deck Frame Mounted 70-Gal Aluminum Oil Tank DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform Hydraulic Hook Rotator with T-Hook at End of Boom DANFOSS Valve – At Top Seat Level controls with access ladder, Hydraulic hook rotator with T-hook at end of boom SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord Crane Painted BIK Red, load chart on boom in FT. & LBS. – Load Tested & Installed end of frame on pre-engineered subbase. Deck Details NEW – 22’6″ LOW PROFILE STEEL CHECKER PLATED DECK Installed on Pre-Engineered 6” Main Sill Sub Frame & Extension with X-Braces for Torsional Support Tied to Truck Frame by Sheer Plating at Front, Center and Rear Top welded 3” cross members Checker plate steel deck surface 66” + headboard, Removable Center Divider with 4-vertical mounted winch straps to wrap around cages for transport 8 – under deck sliding tie-down winch straps on passenger side Winch bar holder and winch bar, dual ladder access at front Reflectors and side lights as required by DOT standards. Truck Details NEW – KENWORTH T880 4-AXLE TRUCK – 86,000 lbs GVWR Cab White, Paccar 485 hp, 1,650 ft/lb Torque Jake Brake, Eaton Ultra Shift Plus 18 Spd Automated Transmission 20,000 lb Front Steer Axle with 425/65R22.5 Tires on Aluminum Rims 20,000 lb Self-Steer Pusher Axle Installed Ahead of Tandem 46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims 54” Spread at TA, Double Frame Options Including: A/C, Tilt/Telescopic Steering, Power Windows & Locks, AM/FM/MP3 w/Bluetooth, Air Driver’s Seat and Standard Pass Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock-ups, Trailer Air Tow Package, Chromed Front and Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc… Also Included: Two Sets of Aluminum Stabilizer Pads with Holders Mounted on Truck 24” Aluminum Checker Plate Storage Box, Hydraulic Rotator 1” Drawplate Installed at RearMehr anzeigen

BIK Boom Trucks - Etobicoke, ON

41 Claireville Drive M9W 5Z7 Toronto Ontario Kanada
